Sorry for the constant flow of questions folks!
your support and responses are greatly appreciated though.
Ive noticed the passenger side bonnet sitting fairly proud of the headlight and wing. Upon inspection it appears the battery height is to blame. Its fitted with an 075 battery.
According to halfords.com that's correct. Yuasa list a YBX3111 but that's as tall, slightly deeper but not as wide so not confident that'll sort the issue.
Anyone else experienced this or know of a suitable battery number?
-
Mondeo55
- Registered User
- Posts: 462
- Joined: Mon Sep 10, 2018 4:48 pm
- Has thanked: 24 times
- Been thanked: 4 times
Post
by Mondeo55 » Wed Jan 09, 2019 7:22 pm

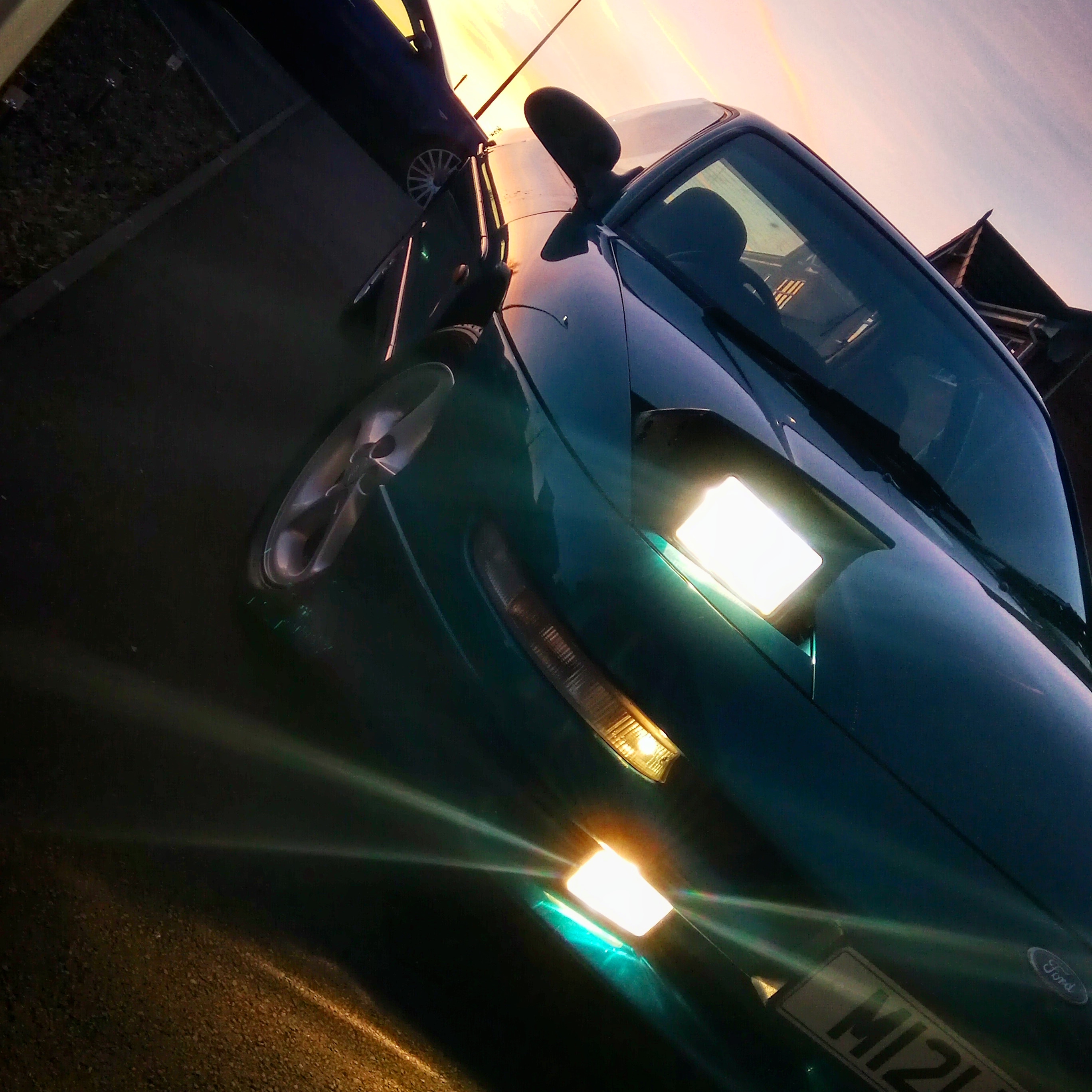

- IMG_20190109_182904_428.jpg (1.21 MiB) Viewed 26045 times
She finally fired today and I spent the weekend with the DA mop on its paintwork so its looking far better than when it arrived a few weeks back
-
mojo98
- Tech Rep
- Posts: 2627
- Joined: Thu Sep 06, 2018 10:52 pm
- Has thanked: 41 times
- Been thanked: 55 times
Post
by mojo98 » Wed Jan 09, 2019 8:07 pm
I always use AM058L Battery, (correct size) without have to alter the battery tray, (from Tanya Batteries)
Halfords & Euro part sell the wrong size
-
Mondeo55
- Registered User
- Posts: 462
- Joined: Mon Sep 10, 2018 4:48 pm
- Has thanked: 24 times
- Been thanked: 4 times
Post
by Mondeo55 » Wed Jan 09, 2019 8:41 pm
mojo98 wrote: ↑Wed Jan 09, 2019 8:07 pm
I always use AM058L Battery, (correct size) without have to alter the battery tray, (from Tanya Batteries)
Halfords & Euro part sell the wrong size
Cool, I'll take a look at that now. Can the tray be altered? Mine was full of water and the fixing screws or bolts have rotted away!
-
Mondeo55
- Registered User
- Posts: 462
- Joined: Mon Sep 10, 2018 4:48 pm
- Has thanked: 24 times
- Been thanked: 4 times
Post
by Mondeo55 » Wed Jan 09, 2019 8:51 pm
Just checked, its same height as what's on there
-
jrh
- Full Member
- Posts: 1022
- Joined: Thu Sep 20, 2018 3:08 pm
- Been thanked: 43 times
Post
by jrh » Wed Jan 09, 2019 9:07 pm
Ah, you have found the problem I have the solution too.
18 years ago I sent the drawing for the plate you need to make to Paul Player of the old FPOC, somewhere I have a copy.
Essentially ,you remove the battery base plate and substitute 'my plate', it gives the 075 battery terminals plenty of space, not to touch the bonnet.
-
Mondeo55
- Registered User
- Posts: 462
- Joined: Mon Sep 10, 2018 4:48 pm
- Has thanked: 24 times
- Been thanked: 4 times
Post
by Mondeo55 » Wed Jan 09, 2019 10:37 pm
So I'll need to manufacture my own battery tray to get one to fit?
-
mojo98
- Tech Rep
- Posts: 2627
- Joined: Thu Sep 06, 2018 10:52 pm
- Has thanked: 41 times
- Been thanked: 55 times
Post
by mojo98 » Wed Jan 09, 2019 11:07 pm
Mondeo55 wrote: ↑Wed Jan 09, 2019 8:51 pm
Just checked, its same height as what's on there
the Poles at the same height, but the BODY isn't ALL MY PROBE HAVE THEM FITTED AND MY BONNET IS OK (and I have 6 probe and none have a problem with passenger side bonnet (it does not lift)
-
fuerte
- Registered User
- Posts: 884
- Joined: Fri Sep 07, 2018 10:10 am
- Has thanked: 22 times
- Been thanked: 1 time
Post
by fuerte » Wed Jan 09, 2019 11:56 pm
mojo98 wrote: ↑Wed Jan 09, 2019 11:07 pm
Mondeo55 wrote: ↑Wed Jan 09, 2019 8:51 pm
Just checked, its same height as what's on there
the Poles at the same height, but the BODY isn't ALL MY PROBE HAVE THEM FITTED AND MY BONNET IS OK (and I have 6 probe and none have a problem with passenger side bonnet (it does not lift)
Agree I have the make and model mojo recommends and fits perfectly.
-
Alan8086
- Full Member
- Posts: 114
- Joined: Sun Sep 09, 2018 12:49 am
Post
by Alan8086 » Thu Jan 10, 2019 2:15 am
Yep, I have the same issue - bonnet a bit lifted behind the p/s headlight. I'll try the suggested battery. It annoys me to look at that sunken headlight!
